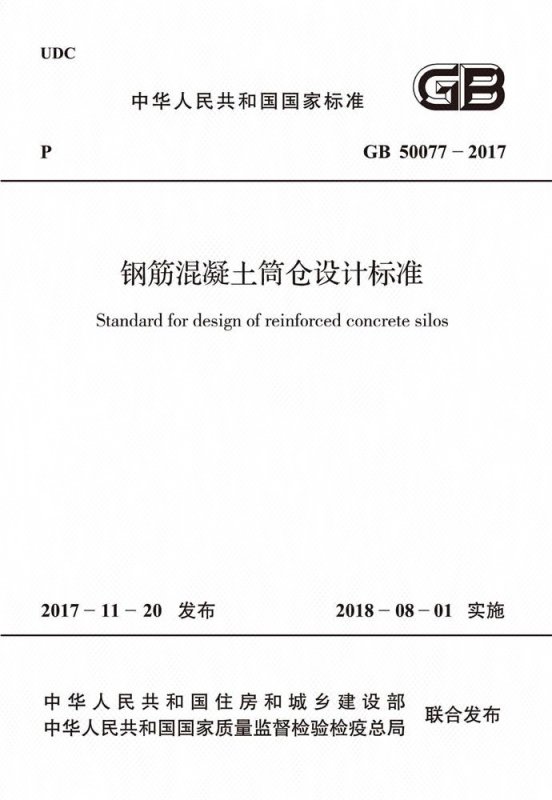

钢筋混凝土筒仓设计标准

Standard for design of reinforced concrete silos

会员免费阅读,去 购买

  • 标准信息
  • 中文目录
  • 英文目录
  • 公告
收起

标准信息

  • 【主编部门】
    中国煤炭建设协会
  • 【批准部门】

    中华人民共和国住房和城乡建设部

  • 【发布单位】

    中华人民共和国住房和城乡建设部;中华人民共和国国家质量监督检验疫总局

  • 【主编单位】

    中煤科工集团北京华宇工程有限公司

  • 【参编单位】

    中国电力工程顾问集团华北电力设计院有限公司;中国电力工程顾问集团东北电力设计院有限公司;中国电力工程顾问集团西北电力设计院有限公司;天津水泥工业设计研究院有限公司;中国中材国际工程股份有限公司;中煤邯郸设计工程有限责任公司;中煤西安设计工程有限责任公司;中冶长天国际工程有限责任公司;长沙有色冶金设计研究院有限公司;河南工大设计研究院;国贸工程设计院;江苏新筑预应力工程有限公司;河南工业大学土木建筑学院

  • 【参加单位】

    中国煤炭建设协会勘察设计委员会

  • 【主要起草人】

    崔元瑞;陈玉欣;田树桐;连艳红;杨眉;林娜;欧阳俊;司马德义;邵一谋;姬海清;李胜利;肖玉银;李寿明;袁海龙;郭呈周;鲁明玉;周先财;原方;刘海燕

  • 【主要审查人】

    王志杰;龚佳;郝汝青;周丽琼;王振清;徐晖;王宗祥;刘跃生;郑捷

收起

中文目录

  • 中华人民共和国住房和城乡建设部公告

  • 前  言

  • 1 总  则

  • 2 术语和符号

    • 2.1 术  语

    • 2.2 符  号

  • 3 布置原则及结构选型

    • 3.1 一般规定

    • 3.2 布置原则

    • 3.3 结构选型

  • 4 结构上的作用

    • 4.1 作用分类及荷载效应组合

    • 4.2 贮料压力

    • 4.3 温度作用

  • 5 结构计算

    • 5.1 一般规定

    • 5.2 仓顶、仓壁及仓底结构

    • 5.3 筒仓仓壁预应力

    • 5.4 仓下支承结构及基础

  • 6 构  造

    • 6.1 圆形筒仓仓壁和筒壁

    • 6.2 矩形筒仓仓壁

    • 6.3 洞  口

    • 6.4 漏  斗

    • 6.5 柱和环梁

    • 6.6 内  衬

    • 6.7 抗震构造措施

    • 6.8 预应力混凝土筒仓仓壁

  • 7 堆 料 仓

    • 7.1 布置原则

    • 7.2 作用分类

    • 7.3 荷载计算

    • 7.4 稳定验算

    • 7.5 结构计算

    • 7.6 构  造

  • 8 槽  仓

    • 8.1 布置和形式

    • 8.2 结构计算

    • 8.3 构  造

  • 附录A 贮料的物理特性参数

  • 附录B 圆形筒仓仓侧大偏心卸料荷载

  • 附录C 大型圆形浅仓贮料压力计算公式

    • C.1 贮料压力的计算规定

    • C.2 大型圆形浅仓的贮料工况

  • 附录D 系数ξ=cos2α+ksin2α,k=tan2(45°-φ/2)及λ=(1-e-μks/ρ)的值

  • 附录E 温度作用下混凝土及钢筋强度折减系数、预应力筋强度、摩擦系数;仓壁直接落地的圆形筒仓及大型圆形浅仓在贮料水平侧压力作用下,基础对仓壁固端约束的边界效应、筒仓预应力张拉的次弯矩、次剪力函数的计算值

  • 附录F 框架支承式钢筋混凝土矩形筒仓的侧移刚度

  • 附录G 星仓仓壁及洞口应力计算

  • 附录H 轴对称旋转壳体在对称荷载作用下的内力计算

  • 附录K 矩形筒仓按平面构件的内力计算

    • K.1 对称布置的矩形筒仓的内力计算

    • K.2 非对称布置的矩形筒仓的内力计算

  • 本标准用词说明

  • 引用标准名录

收起

英文目录

  • 1 General provisions

  • 2 Terms and symbols

    • 2.1 Terms

    • 2.2 Symbols

  • 3 Layout principle and structure selection

    • 3.1 General requirements

    • 3.2 Layout principle

    • 3.3 Structure selection

  • 4 Actions on structures

    • 4.1 Classification of actions and load effect combination

    • 4.2 Pressure of stored materials

    • 4.3 Thermal effects

  • 5 Structures calculation

    • 5.1 General requirement

    • 5.2 Structure of silo roofs,silo walls and silo bottoms

    • 5.3 Prestress of silo walls

    • 5.4 Supporting structure and foundation of silos

  • 6 Construction

    • 6.1 Cylindrical silo walls and cylindrical walls

    • 6.2 Rectangular silo walls

    • 6.3 Holes

    • 6.4 Hoppers

    • 6.5 Columns and ring beams

    • 6.6 Liners

    • 6.7 Earthquake resistant constructional measures

    • 6.8 Prestressed concrete silo walls

  • 7 Stacking tubes

    • 7.1 Layout principle

    • 7.2 Classification of actions

    • 7.3 Calculation of loads

    • 7.4 Overturning calculation

    • 7.5 Structures calculation

    • 7.6 Construction

  • 8 Trough bunkers

    • 8.1 Layout and type of trough bunkers

    • 8.2 Structures calculation

    • 8.3 Construction

  • Appendix A Physical characteristics parametersof stored materials

  • Appendix B Discharge load for circular silos with largeoutlet eccentricities on silos walls

  • Appendix C Formulas of stored materials pressurefor squat silos

  • Appendix D Coefficients:ξ=cos2α+ksin2α,k=tan2(45°-φ/2),λ=(1-e-μks/ρ)

  • Appendix E Reduction factor of concrete strength and steel strength under the temperature action, strength of prestressed steel,coefficient of frictions,function calculation values of base-fixed effect of sylindrical silo and squat silo under horizontal pressure acting by stored materials,function calculations values of secondary bending moments and shears of prestressed stee

  • Appendix F Sideway rigidity of frame-supported reinforcedconcrete rectangular silos

  • Appendix G Stresses calculation of interstice silowalls and holes

  • Appendix H Internal forces calculation of axi-symmetric rotating shells under axial symmetry loads

  • Appendix K Internal forces calculation of structuralmembers of rectangular silos

  • Explanation of wording in this standard

  • List of quoted standards

收起

公告

中华人民共和国住房和城乡建设部公告

4-40-00
第1742号
住房城乡建设部关于发布国家标准《钢筋混凝土筒仓设计标准》的公告
现批准《钢筋混凝土筒仓设计标准》为国家标准,编号为GB 50077—2017,自2018年8月1日起实施。其中,第3.1.43.1.5(1、2、3)、3.1.75.1.15.4.36.1.1(1、3、4)、6.1.36.1.126.8.56.8.7条(款)为强制性条文,必须严格执行。原国家标准《钢筋混凝土筒仓设计规范》GB 50077—2003同时废止。
本标准在住房城乡建设部门户网站(www.mohurd.gov.cn)公开,并由我部标准定额研究所组织中国计划出版社出版发行。
中华人民共和国住房和城乡建设部
2017年11月20日
收起

本书术语

术语 英文名称 术语 英文名称
筒仓 silo 仓上建筑物 building above the top of silo
仓顶 top of silo 仓壁 wall of silo
仓下支承结构 supporting structure of silo bottom 筒壁 supporting wall
斜壁 inclined wall 漏斗 hopper
深仓 slender silo 浅仓 shallow bin
